Surgical shadowless lamps are used to illuminate the surgical site for optimal visualisation of small, low contrast objects at different depths in incisions and body cavities.
1.Surgical shadowless lamps are used to illuminate the surgical site for optimal visualisation of small, low contrast objects at different depths in incisions and body cavities.
2.Surgical shadowless lamps should be designed to eliminate as many shadows as possible and to minimise colour distortion.
3.The shadowless lamp must also be able to work continuously for long periods of time without giving off excessive heat.
Hospital outpatient clinics, hospital operating rooms, hospital examination rooms, general practice clinics, community health service centres, health check-up centres, elderly institutions, etc.

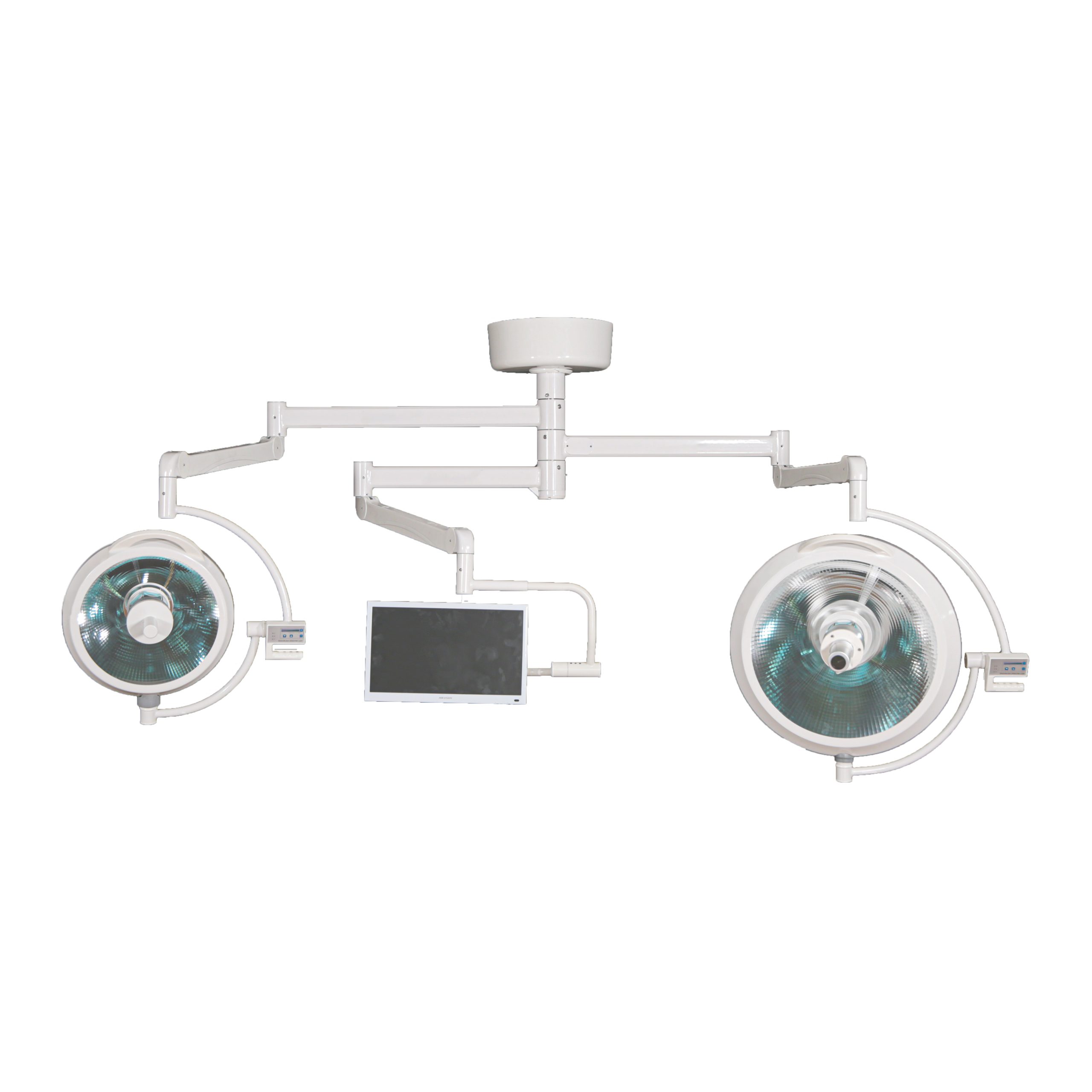

Specification ：ZF700/500 type
Illuminance (Lux) ： 80000-160000/60000-140000
Colour temperature (K): 4500±250
Spot diameter (mm): 150-350
Colour rendering index ：≥95
Lighting depth (mm): ≥1200
Brightness grade dimming eight grade dimming
Temperature rise (℃) (working area) ≤10
Temperature rise of the operator's head (℃) ≤2
Total radiance (W/m2) ≤450
Radiation density (mW/(m2▪lx)) ≤6
Power supply voltage ~220V/50Hz
Input power (W) 400
Lamp power (W) 24V 150/150
Automatic switching of main and secondary lamps
Optimum installation height (mm) 2900
1.CAD/CAM technology has created a multi-prismatic surface integral reflection optical system with an illumination depth of 1200mm, suitable for complex surgical illumination with good light quality without harshness.
2.Computerised digital control with eight-segment continuous display brightness selection and illumination memory function makes it easy for the operator to use and does not require frequent adjustment of brightness.
3.With back-up bulb automatic switching function, when the main light fails, the secondary light will automatically light up within 0.2 seconds, and the handle panel has instructions for the failure of the main and secondary lights, reminding timely replacement after surgery.
