It is mainly used to accurately control the amount and speed of liquid infusion per unit time, and achieve the purpose of uniform drug speed, accurate dosage and safe injection into the patient's body through the volume of liquid input per unit time.
ICU, CCU and other intensive care units are standard configurations; pediatrics, obstetrics and gynecology, etc., require lower flow rates (such as oxytocin, etc., the infusion flow rate is generally around 25ml/h), higher infusion accuracy; there are requirements for infusion accuracy Departments; Departments that require infusion flow rate (low speed, high speed); With the development of medical services, all departments that need infusion will use.
Infusion mode: five infusion modes: ml/hour, total amount/time, Bolus, drop/minute and drug library
Infusion set specifications: special or standard disposable infusion sets (20 or 60 drops/ml, diameter 3.4 ~ 4.5mm)
Flow rate setting range: 1.0ml/h～1200ml/h,1.0d/min～400d/min
KVO flow rate: 1ml/h~5ml/h adjustable
Key function: menu-style operation, full numeric keypad for precise input, quick and convenient operation
Blocking pressure detection: dedicated upper and lower pipeline dual pressure sensor detection, lower pipeline detection range: 40KPa ~ 130KPa, 10 levels of sensitivity adjustable, dynamic display of pressure value changes
Bubble detection: Ultrasonic bubble detection, detection range: ≥50ul, 10 levels of sensitivity adjustable
Anti-motor reverse function: anti-motor reverse device, real-time monitoring of the running direction of the stepper motor, to prevent reverse pumping
Machine self-inspection function: power-on self-inspection and real-time self-inspection during infusion
Alarm prompts: air bubbles, upper pipeline blockage, lower pipeline blockage, door open, infusion completion, operation delay, low battery voltage, battery exhaustion, pause timeout, battery falling off, AC power interruption, self-flow alarm, infusion parameter error, infusion The sensor is not calibrated, the air bubble sensor is wrong, the motor is wrong, the pump is wrong, the pressure sensor is wrong, the preset value cannot be 0, the communication error, the system error
Built-in battery: rechargeable lithium battery, DC11.1V, 3000mAh; continuous operation at a speed of 25ml/h, working time: ≥9 hours, real-time detection of battery power and display
1. Super large color LCD display, intelligent display of multiple parameters on the same screen, dynamic and intuitive.
2. ATM-style operation, Chinese menu-style display, digital keyboard precise input, convenient and fast.
3. Time mode, ml/h, d/min, intelligent display on the same screen, automatic unit conversion to avoid conversion errors.
4. The battery with super large battery life can last for 10 hours in case of power failure, ensuring uninterrupted drug administration during power failure, consultation, and referral.
5. The upper and lower end pressure detection, bubble sensitivity, and sound are all adjustable in 10 steps to ensure the safety of infusion and facilitate clinical operation and management.

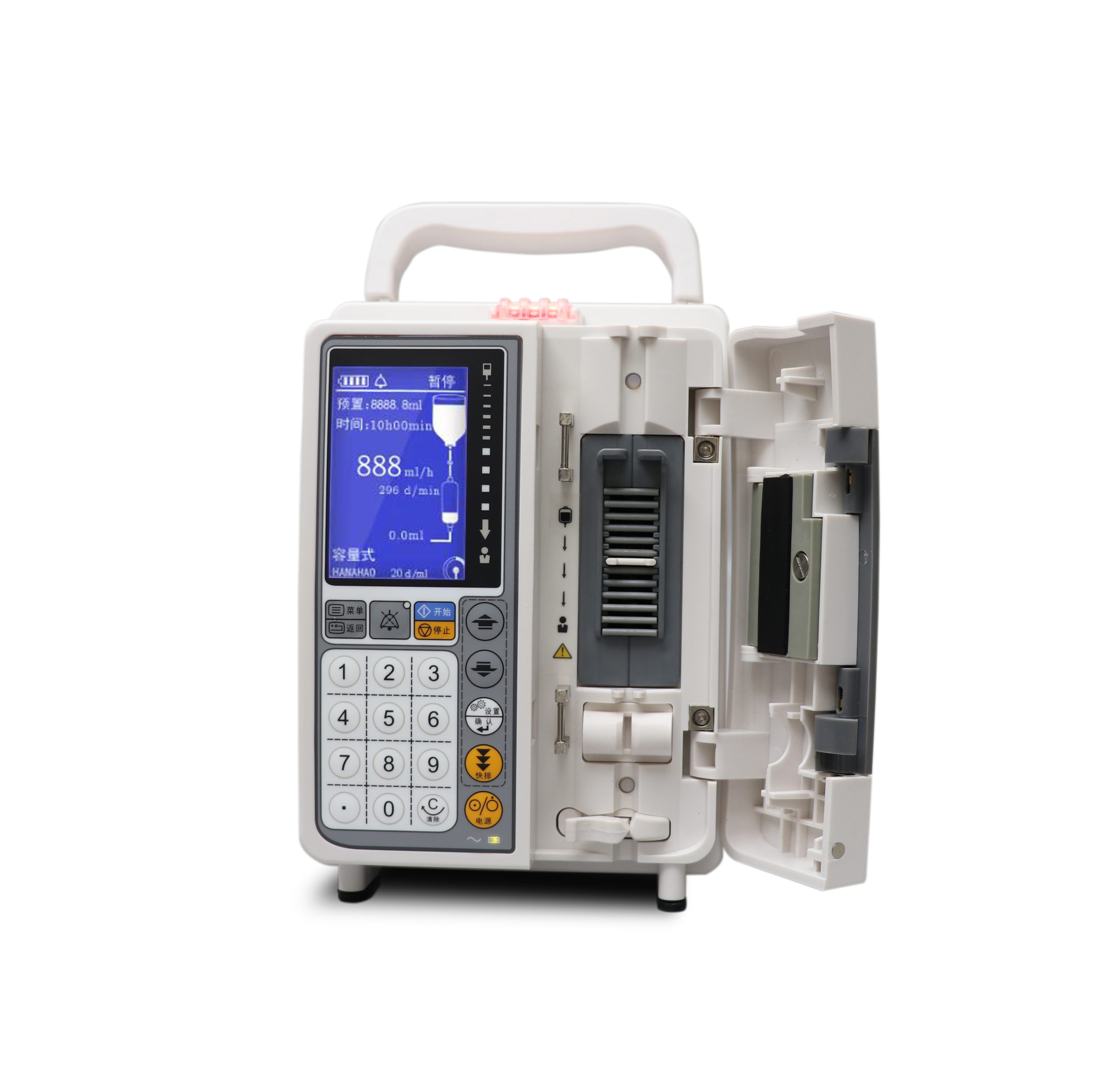

6. The detachable pump head is convenient for cleaning and disinfection to ensure the accuracy of infusion.
7. It is suitable for infusion sets from any manufacturer, making clinical selection more convenient.
8. Double door buckle design, the infusion pipeline is evenly stressed, ensuring the flexibility of the infusion set and improving the accuracy of infusion.
